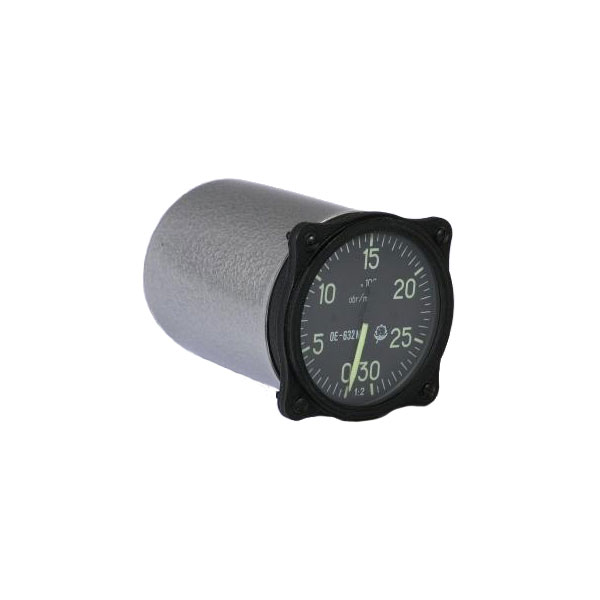

Electric tachometer

Electric tachometer

Application

An instrument for measuring rotational speed by measuring the output voltage of a generator driven by the rotating unit by a distance of 25m.

Product information

In our offer we have electric tachometers which are composed of a transmitter and an indicator. In the chart below please find specification of transmitters and indicators.

Technical data

Symbol TE3W TE4MW OE632M
Range of measurement
[rpm]
0-3000 0-4000 0-3000
Admissible error
[rpm]
± 30 ± 40 ± 30
Ambient temperature
[°C]
-40/+50
Set elements
(transmitter/indicator)
1/1
Ratio 1:2
